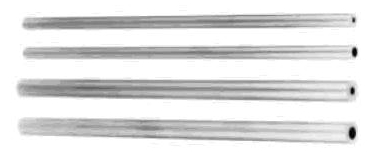

美国HIP不锈钢管及连接管件
| 连接管 | 连接管钢管尺寸（O.D.*I.D.） | ||
| 长度（"） | 1/4"O.D.*1/16"I.D. | 3/8"O.D.*1/16"I.D. | |
| （316SS） | （304SS） | （304SS） | |
| MPA | 690 | 690 | 1034 |
| 23/4" | 100-XM4-2.75 | 100-XM4-2.75 | |
| 4" | 150-XM6-4 | ||
| 6" | 100-XM4-6 | 100-XM4-6 | 150-XM6-6 |
| 8" | 100-XM4-8 | 100-XM4-8 | 150-XM6-8 |
| 10" | 100-XM4-10 | 100-XM4-10 | 150-XM6-10 |
| 12" | 100-XM4-12 | 100-XM4-12 | 150-XM6-12 |
| 连接管 | 连接管钢管尺寸（O.D.*I.D.） | ||||||
| 长度（"） | 1/4"O.D. *7/64"I.D. | 3/8"O.D.* 13/64" I.D. | 9/16"O.D.* 5/16" I.D. | 3/4"O.D.* 33/64"I.D. | 3/4"O.D.* 7/16"I.D. | 1"O.D.* 11/16"I.D. | 1"O.D.* 9/16"I.D. |
| MPA | 138 | 138 | 138 | 69 | 138 | 69 | 138 |
| 23/4" | 20-LM4-2.75 | ||||||
| 3" | 20-LM6-3 | ||||||
| 4" | 20-LM9-4 | 10-LM12-4 | 20-LM12-4 | ||||
| 6" | 20-LM4-6 | 20-LM6-6 | 20-LM9-6 | 20-LM12-6 | 20-LM12-6 | 20-LM16-6 | 20-LM16-6 |
| 8" | 20-LM4-8 | 20-LM6-8 | 20-LM9-8 | 20-LM12-8 | 20-LM12-8 | 20-LM16-8 | 20-LM16-8 |
| 10" | 20-LM4-10 | 20-LM6-10 | 20-LM9-10 | 20-LM12-10 | 20-LM12-10 | 20-LM16-10 | 20-LM16-10 |
| 12" | 20-LM4-12 | 20-LM6-12 | 20-LM9-12 | 20-LM12-12 | 20-LM12-12 | 20-LM16-12 | 20-LM16-12 |
| 连接管 | 连接管钢管尺寸（O.D.*I.D.） | ||||||
| 长度（"） | 1/8"*0.020" | 1/8"*0.040" | 1/8"*0.083" | 3/8"*1/8" | 9/16"*3/16" | 9/16"*3/16" | 1"*0.437" |
| MPA | 414 | 207 | 414 | 414 | 276 | 414 | 207 |
| 2" | 60-HM2-2 | 30-HM2-2 | |||||
| 23/4" | 60-HM4-2.75 | ||||||
| 3" | 60-HM2-3 | 30-HM2-3 | 60-HM6-3 | ||||
| 4" | 60-HM2-4 | 30-HM2-4 | 40-HM9-4 | 60-HM9-4 | |||
| 6" | 60-HM2-6 | 30-HM2-6 | 60-HM4-6 | 60-HM6-6 | 40-HM9-6 | 60-HM9-6 | |
| 8" | 60-HM4-8 | 60-HM6-8 | 40-HM9-8 | 60-HM9-8 | 30-HM16-8 | ||
| 9" | 60-HM2-9 | 30-HM2-9 | 30-HM16-9 | ||||
| 10" | 60-HM4-10 | 60-HM6-10 | 40-HM9-10 | 60-HM9-10 | 30-HM16-10 | ||
| 12" | 60-HM2-12 | 30-HM2-12 | 60-HM4-12 | 60-HM6-12 | 40-HM9-12 | 60-HM9-12 | 30-HM16-12 |
HIP不锈钢管
| 规格 | 钢管尺寸 | MPA | 连接型式 | 材质 | 型号 |
| 1/16" | 1/16"O.D.*0.006"I.D. | 103 | 1/16" TAPER SEAL（AF1） | 316SS | 15-9A1-006 |
| 1/16"O.D.*0.030"I.D. | 15-9A1-030 | ||||
| 1/8" | 1/8"O.D.*0.060"I.D. | 103 | 1/8" TAPER SEAL（AF2） | 316SS | 15-9A2 |
| 1/4" | 1/4"O.D.*1/8"I.D. | 69 | 1/4" TAPER SEAL（AF4） | 316SS | 10-9A4-316 |
| 304SS | 10-9A4-304 | ||||
| 3/8" | 3/8"O.D.*1/4"I.D. | 69 | 3/8" TAPER SEAL（AF6） | 316SS | 10-9A6-316 |
| 304SS | 10-9A6-304 | ||||
| 1/4" | 1/4"O.D.*0.109"I.D. | 138 | 1/4" MEDIUN PRESSURE（LF4） | 316SS | 20-9M4-316 |
| 3/8" | 3/8"O.D.*0.203"I.D. | 138 | 3/8" MEDIUN PRESSURE（LF6） | 316SS | 20-9M6-316 |
| 9/16" | 9/16"O.D.*0.359"I.D. | 69 | 9/16" 中压连接（LF9） | 316SS | 10-9M9-316 |
| 9/16"O.D.*0.312"I.D. | 138 | 304SS | 20-9M9-304 | ||
| 316SS | 20-9M9-316 | ||||
| 3/4" | 3/4"O.D.*0.516"I.D. | 69 | 3/4" MEDIUN PRESSURE（LF12） | 316SS | 10-9M12-316 |
| 3/4"O.D.*0.438"I.D. | 138 | ||||
| 1" | 1"O.D.*0.688"I.D. | 69 | 1" MEDIUN PRESSURE（LF16） | 316SS | 10-9M16-316 |
| 1"O.D.*0.562"I.D. | 138 | ||||
| 1/8" | 1/8"O.D.*0.020"I.D. | 414 | 1/8" HIGH PRESSURE（HF2） | 316SS | 60-9H2 |
| 1/8"O.D.*0.040"I.D. | 207 | 30-9H2 | |||
| 1/4" | 1/4"O.D.*0.083"I.D. | 414 | 1/4" HIGH PRESSURE（HF4） | 316SS | 60-9H4-316 |
| 304SS | 60-9H4-304 | ||||
| 3/8" | 3/8"O.D.*1/8I.D. | 414 | 3/8" HIGH PRESSURE（HF6） | 316SS | 60-9H6-316 |
| 9/16" | 9/16"O.D.*3/16"I.D. | 414 | 9/16" HIGH PRESSURE（HF9） | 316SS | 60-9H9-316 |
| 304SS | 60-9H9-304 | ||||
| 9/16" | 9/16"O.D.*1/4"I.D. | 276 | 9/16" HIGH PRESSURE（HF9） | 316SS | 40-9H9-316 |
| 304SS | 40-9H9-304 | ||||
| 1" | 1"O.D.*0.437"I.D. | 207 | 1/8" HIGH PRESSURE（HF2） | 316SS | 30-9H16-316 |
| 1/4" | 1/4"O.D.*1/16"I.D. | 690 | 1/4" ULTRA HIGH PRESSURE（XF4） | 316SS | 100-9X4-316 |
| 304SS | 100-9X4-304 | ||||
| 3/8" | 3/8"O.D.*1/16"I.D. | 1034 | 3/8" ULTRA HIGH PRESSURE（XF6） | 304SS | 150-9X6 |
| 304SS | 60-9H6-304 |
温馨提示：由于厂家可能会调整型号，我们没有及时更新，以上选型参数仅供参考，建议咨询我们人工确认。
